1. Overview
This is a comparative analysis of insulation monitoring devices (IMD) and DC leakage current relays (DC Relay) for energy storage systems (ESS) and railway systems. Since both environments require high reliability, safety, and operational continuity, the selection of protection devices is very important.
2. Comparison of IMD and DC Relay
The table below summarizes the main differences, features, pros and cons, and applicability of IMD and DC Relay.
|
division |
IMD (Insulation Monitoring Device) |
DC Relay (DC Leakage Current Relay) |
|
function |
Real-time monitoring of insulation resistance of non-grounded (IT) systems, early warning of failures |
Detects and trips circuit or alarms when leakage current occurs |
|
Areas of application |
AC, DC, AC/DC ungrounded systems (inverters, ESS, railways, etc.) |
Mainly for leakage current detection and blocking in DC circuits |
|
merit |
- No interruption of operation upon first insulation failure - Real-time monitoring - Fault location can be tracked |
- Simple structure - Easy to install - Immediate blocking possible - The price is relatively cheap - Maintenance optimization - High reliability and safety - Applicable to various systems |
|
disadvantage |
- High initial cost - System setup required |
- Immediate shutdown upon first failure (reduction in driving continuity) - Unable to track fault location - Possibility of malfunction in some environments (large leakage capacitance) - Detection limits in ungrounded systems - Technical understanding required for operation and interpretation |
|
significant |
Continues operation without system stop even in case of first insulation failure (IT system characteristic) |
Suitable for simple leakage current detection, limited in ungrounded systems |
3. Marine ESS application
Marine ESS must be operated in harsh environments such as high humidity and vibration, and in non-grounded (IT) systems, so IMDs that can monitor insulation resistance in real time and maintain operational continuity even in the event of the first insulation failure are highly suitable. IMDs can track fault locations, thereby increasing the efficiency of complex ESS maintenance and ensuring system safety and continuous operation.
On the other hand, DC relays are easy to install and inexpensive, but they immediately cut off the circuit when leakage current is detected, which reduces operational continuity and has low reliability in ungrounded systems, making them unsuitable for marine ESS.

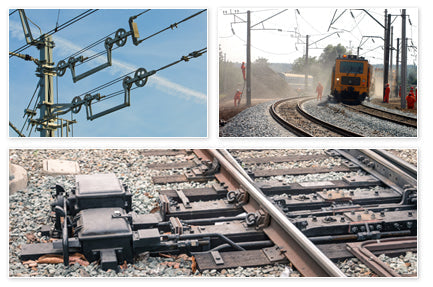

4. Application to railway system
Railway systems (including traction power and onboard ESS) also use ungrounded DC and AC/DC systems to ensure safety and reliability. IMD provides continuous monitoring, early fault detection, and fault location tracking to minimize downtime and maximize maintenance efficiency. It can continue operation even when the first insulation failure occurs, meeting the continuous operation requirements of railway systems.
DC relays pose a risk of service interruption due to immediate blocking, and the inability to trace the location of faults makes large-scale railway network maintenance difficult. However, they can be used as auxiliary protection devices for some non-critical DC circuits where cost is important.
5. Recommendations
-
Key Solution: IMD Introduction
-
Installing IMDs in marine ESS and railway systems ensures real-time insulation monitoring, fault location tracking, and operational continuity.
-
We use IMDs that comply with international standards for IT systems, such as IEC 61557-8.
-
We provide technical training for operations and data interpretation.
-
Auxiliary Solution: DC Relay
-
DC Relays are placed as auxiliary devices in non-critical DC circuits where cost efficiency is important.
-
DC Relays are precisely calibrated to minimize malfunction in high capacitance environments.
6. Considerations when applying
-
System Diagnostics : Detailed analysis of IT system requirements and potential failure points of marine ESS and railway systems.
-
Device Selection : Select IMD and auxiliary DC Relay suitable for the environment, such as marine (IP67 rated) and railway (vibration resistant).
-
Installation : IMD is integrated into the main control panel to provide a real-time monitoring interface. DC Relay is installed in non-critical circuits.
-
Testing and Calibration : Initial testing verifies detection thresholds and fault location accuracy.
-
Training : We provide operator training for driving and troubleshooting.
-
Maintenance Planning : Establishing a predictive maintenance system using IMD data analysis.
-
7. Conclusion
IMD is a protective device optimized for marine ESS and railway systems, providing advanced monitoring functions, operational continuity, and maintenance efficiency. DC Relay can be used as a cost-effective auxiliary device in certain situations. This hybrid approach maximizes the safety, reliability, and cost-effectiveness of the system.
